High Pressure Plunger Pump UDOR PNC Series in Brass 4 – 6 – 8 – 11 – 13 l/min

Forged reinforced brass head UDOR pump for marine watermakers desalinators

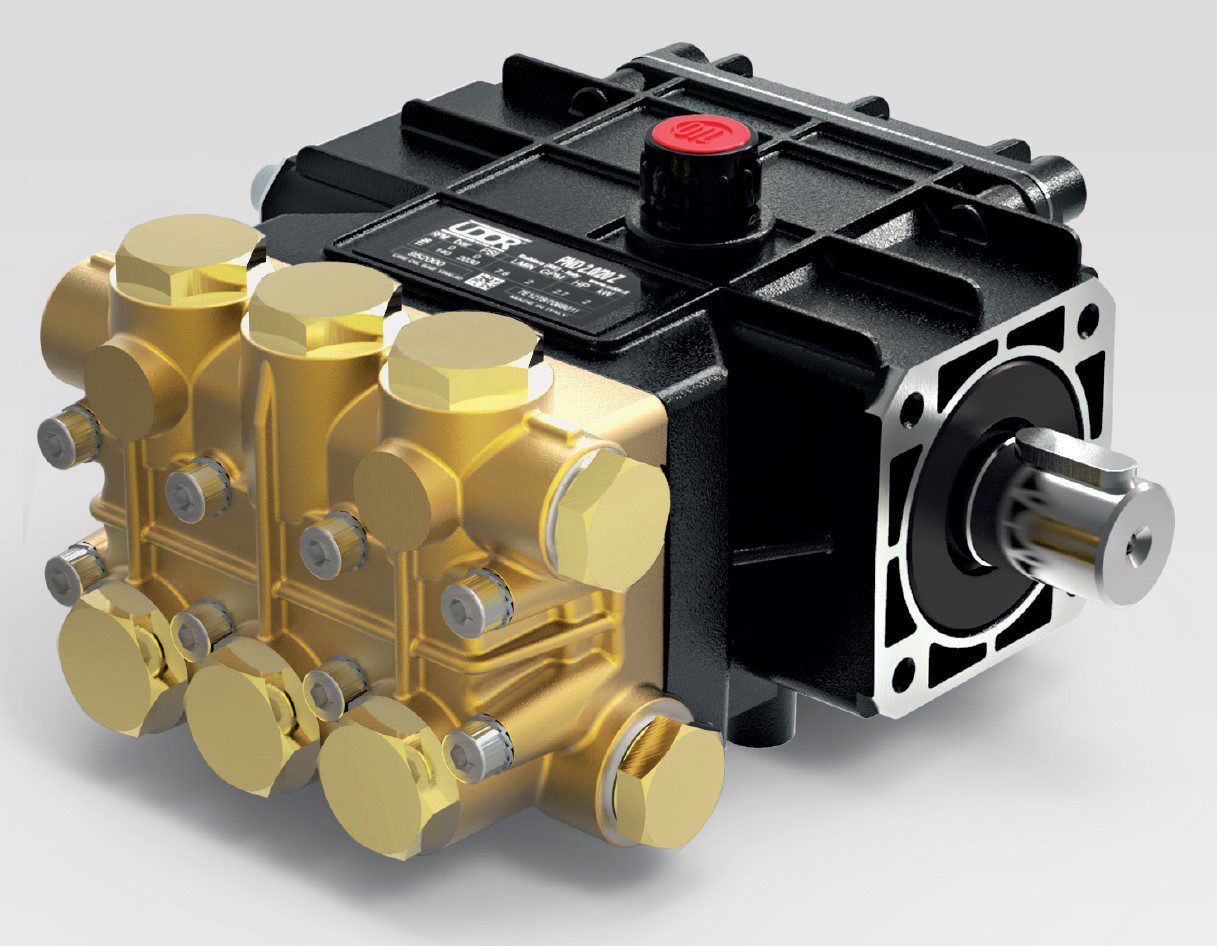

Plunger pump with 3 solid ceramic plungers, forged reinforced brass head, aluminum die cast crankcase with cataphoresis coating, double sealing system, hardened steel crankshaft, oversize roller/ball bearings.

The pumps of this series have a Ø24 mm cylindrical male shaft, they produce a flow from 2 to 15 l/min, they operate at max 140 bar.

These high pressure pumps in brass can be successfully used in the field of reverse osmosis and are a valid and cheaper alternative to pumps with stainless steel heads. They use the same mechanical components as steel pumps, and the brass head will not give problems for a long time if some basic recommendations are observed, such as not leaving salt water. inside during the periods of non-use.

Flow rate: 4, 6, 8, 11 and 13 l/min
Weight: 6.9 kg

UDOR pump – is excellent choice for marine boat water makers (desalinators)!
