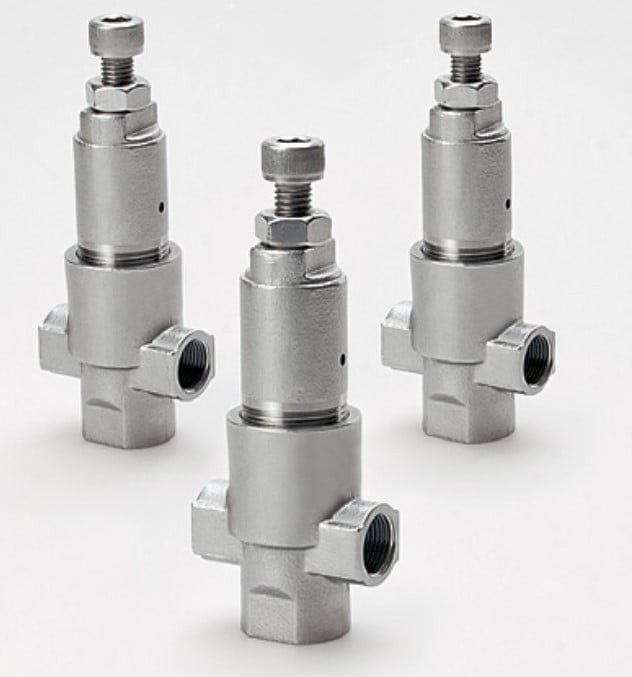

Stainless Steel Safety Pressure Relief Valve

Stainless Steel Safety Pressure Relief Valve - Image 2

Stainless Steel Safety Pressure Relief Valve

Name: Stainless Steel Safety Pressure Relief Valve
SKU: KTH-100-070-055
Availability: InStock

€ 124,00

plus Shipping Costs

Stainless steel safety relief valve protects the system from possible harmful overpressures. When the regulating pressure is exceeded, they discharge part of the water in by-pass, thus obtaining a pressure drop in the system. During standard operation of the system pressure relief valve stainless steel normally remains closed.

SKU: KTH-100-070-055 Categories: RO Watermaker Parts, Water Maker Parts & Components

Description
Additional information

Stainless steel safety relief valve

This stainless steel safety relief valve protects the desalination system from possible harmful overpressures. When the regulating pressure is exceeded, they discharge part of the water in by-pass, thus obtaining a pressure drop in the system. During standard operation of the reverse osmosis desalination system pressure relief valve stainless steel normally remains closed.

CAUTION
All systems require both primary pressure regulating device (i.e., regulator, unloader) and a secondary pressure safety relief device (i.e. , pop-off valve, safety valve). Failure to install such relief devices could result in personal injury or damage to the pump or to system components. We do not assume any liability or responsibility for the operation of a customers high pressure system.

Common specifications – stainless steel safety relief valve
Pressure Range: 50-155BAR
Flow Range: 0-35L/Min
Inlet Port: 3/8” F
Outlet Port: 3/8” F
Bypass Port: 3/8” F
Max Temperature: 80 ̊C
Weight: 450g
Dimensions: 138 mm x 49 mm x 34 mm

Pressure relief valve stainless steel parts (ss pressure relief valve) at a a glance:

Weight	1 kg

Stainless Steel Safety Pressure Relief Valve

Stainless steel safety relief valve
